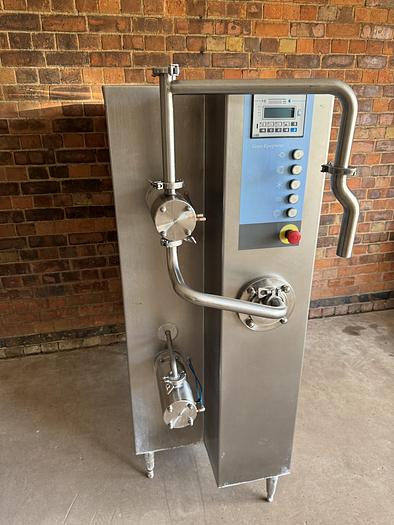

2003 Gram GIF 600 Continuous Freezer

Self-contained continuous ice cream freezer that combine remarkable efficiency with compact size for flexiblThis self-contained continuous ice cream freezer combines remarkable efficiency with compact size for flexible ice cream production and are a vital part of any small-scale ice cream production.

The GIF 600 is a self-contained unit that require no on-site adjustment when delivered. As soon as the connections for the water tower, electricity, and compressed air are established, the unit is ready to operate.

Features

• Automatic overrun control with air mass flow meter
• Automatic mix flow control with volumetric mix flow meter
• Mix and discharge gear pumps in CIP design
• Automatic cylinder pressure control
• Automatic Start/Stop
• Saving-memory of working parameters (up to 25 recipes)

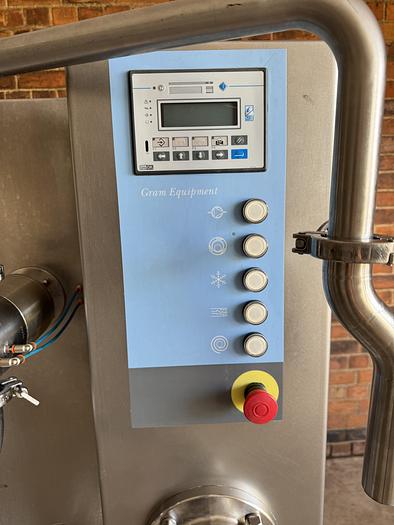

• Display with visualization of operating data
• High-efficiency air filtering and sterilizing system
• R404A direct expansion system
• Built-in hermetic Scroll compressor

Specification

• Rotary inlet and outlet pumps
• Digital and manual controls
• Power requirement: 19kW
• Electrical requirement: 50hz – 3ph – 400v
• Gas type: R404a
