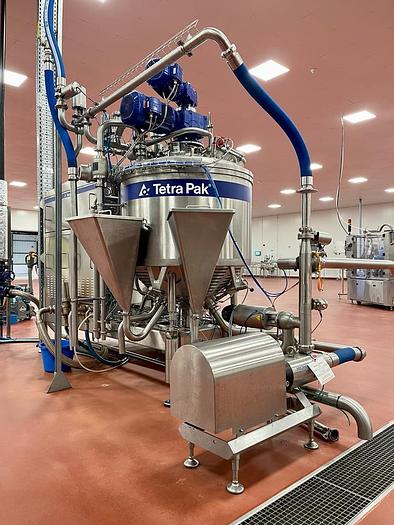

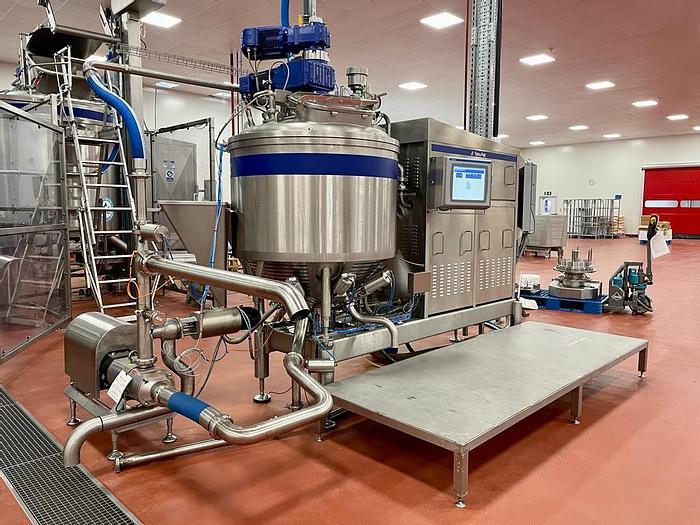

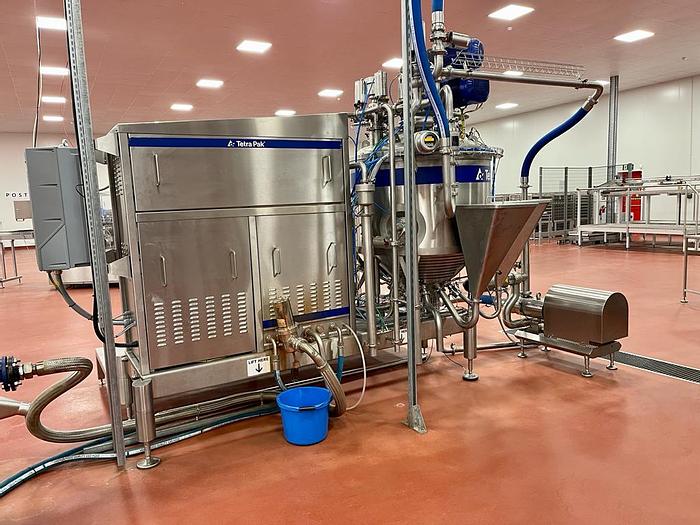

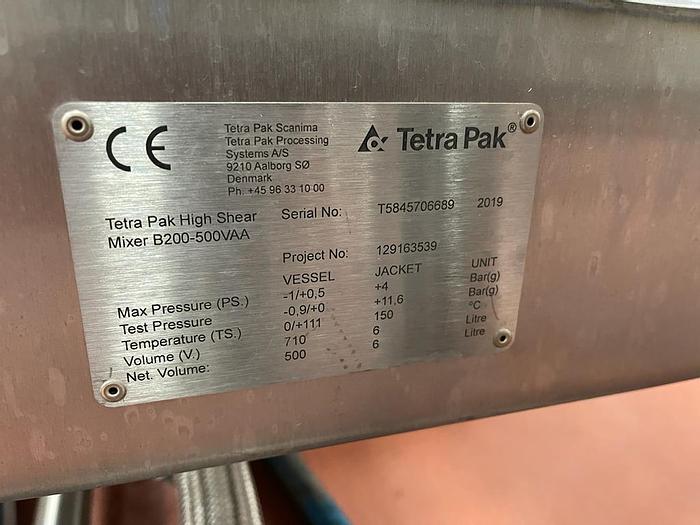

2019 TETRA PAK HIGH SHEAR MIXER B200-500VAA

Applications:

This Tetra Pak High Shear Mixer B200-500VAA is the best solution for mixing products like dairy products, bean and vegetable spreads.

Designed to give the quality our most demanding customers want as well as being cost-efficient by utilising the ingredients to the fullest. Cooking, grinding, mixing and cooling all in one mixer leads to fast batch times and enhanced flexibility.

The heating/cooling options in combination with the dynamic HS mixing head and double-shaft agitator make t possible to produce an almost limitless variety of different products.

Working Principle:

The Tetra Pak High Shear Mixer B200-500VAA are designed for batch production set-up. Variable shear, high shear or gentle blending are all possible within the same unit, with Tetra Pak's patented dynamic HS mixing head. Variable shear is ideal when dealing with shear-sensitive ingredients or applications. Additionally this gives a high level of control over quality parameters such as droplet size, product texture, appearance, taste and mouthfeel.

Intake of both liquid and powder ingredients into the mixing vessel (not directly into the HS mixing head) creates a pre-blend and eliminates the need for a pre-mixing process. There is an ergonomic execution for adding ingredients with a bin lifter and large manway.

An automatic opening lid on the top and a bin lift system allow you to introduce larger ingredients in an efficient sanitary way, and the double-shaft agitator ensures that the product flows correctly around the tank, for an even distribution of the particles. A cooling/heating jacket enables you to heat up or cool down your product. A fully automatic CIP system ensures fast and low-cost cleaning via strategically placed spray balls. Features:

- Dynamic HS Mixing head with CIP cleaning behind primary seals

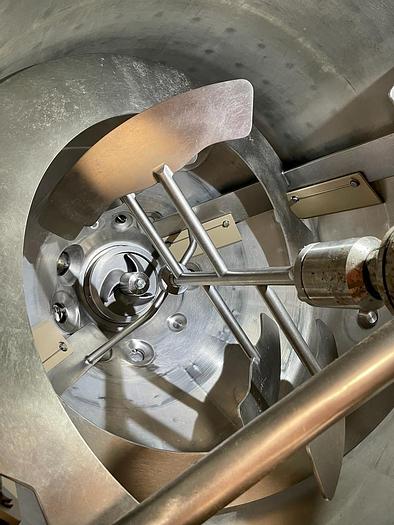

- Double-shaft agitator

- Vacuum system for ingredient introduction

- Heating and cooling jacket

- Manway

- Direct liquid inlet

- CIP cleaning system

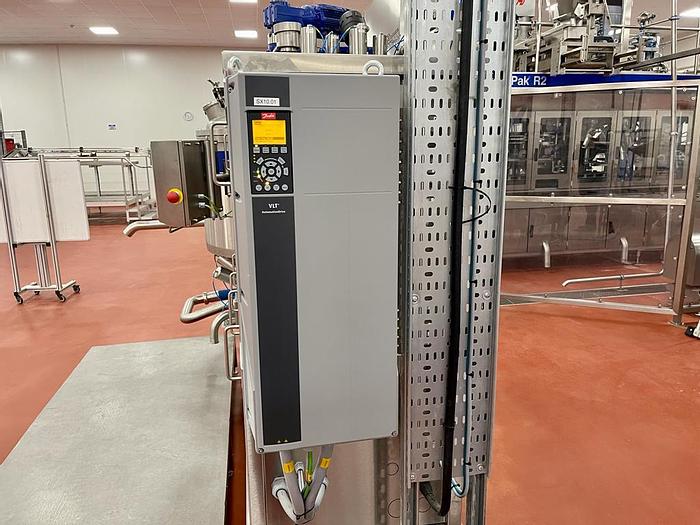

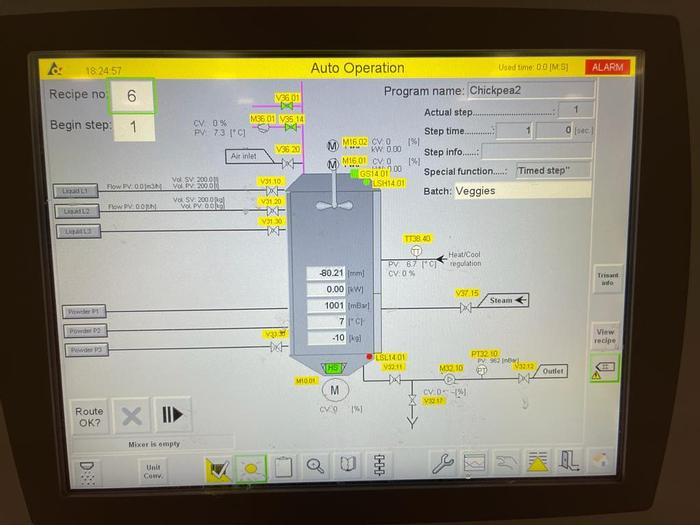

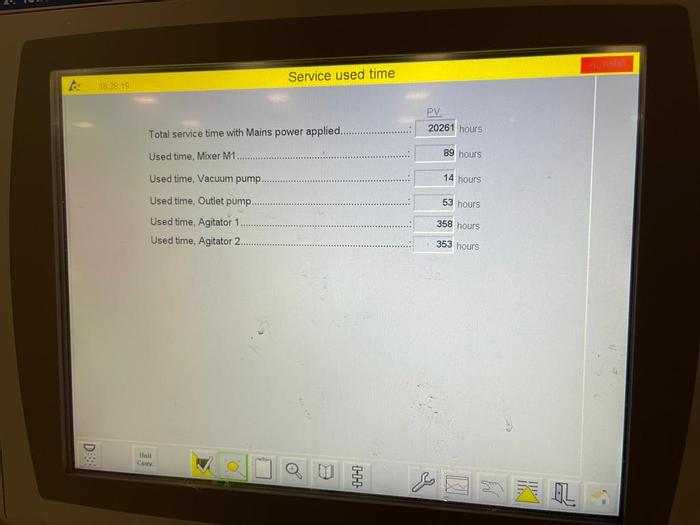

- Control system with Allen Bradley PLC and HMI

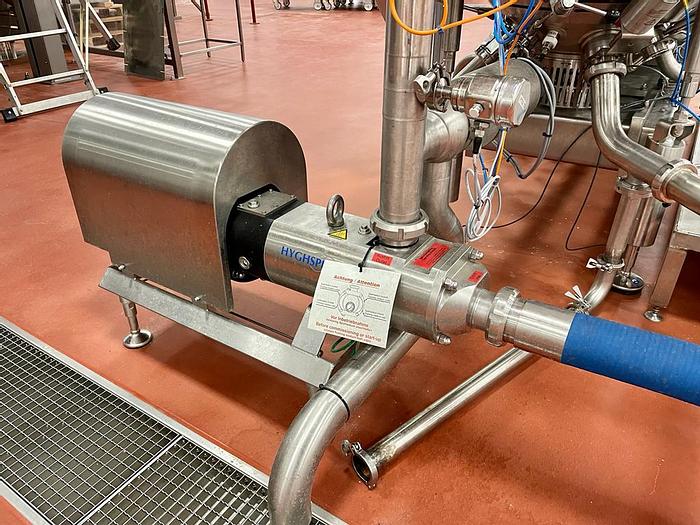

- Twin screw outlet pump for high viscous & CIP

- Pressure vessel

- Direct steam injection

Technical details can be found on PDF document
